PCIe Mode

In PCIe mode, the Modalix PCIe Card is installed in a host machine and provides Modalix inference acceleration over PCIe. The host handles orchestration, storage, and I/O, while the card handles inference workloads.

Use this section when the Modalix hardware is installed as a PCIe card rather than running as a standalone DevKit.

Configure PCIe Mode

Prepare the card, install the host drivers, and optionally configure Ethernet-over-PCIe access.

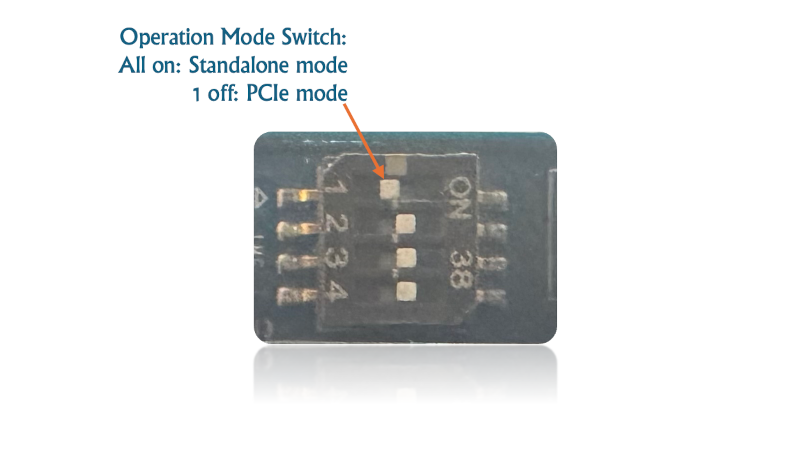

• Hardware PreparationInstall the Modalix PCIe Card, check DIP switches, connect serial/UART, and confirm slot guidance.

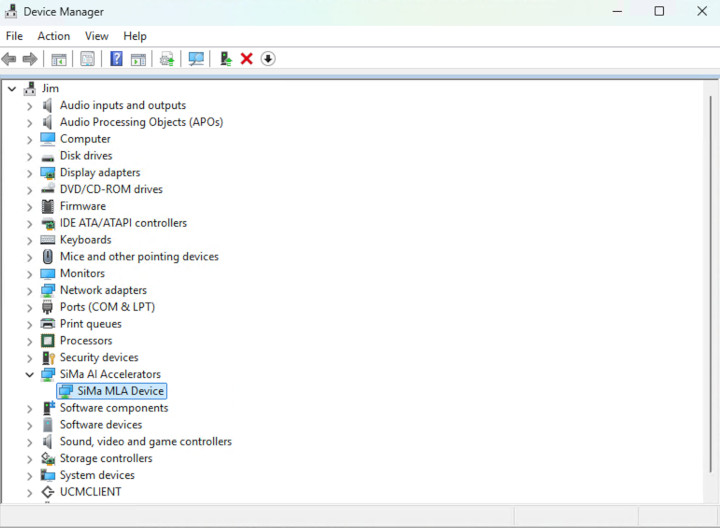

• Driver InstallationInstall Linux or Windows drivers, then verify PCIe discovery.
• Virtual NetworkUse Ethernet-over-PCIe for SSH, SCP, and manual IP configuration.
